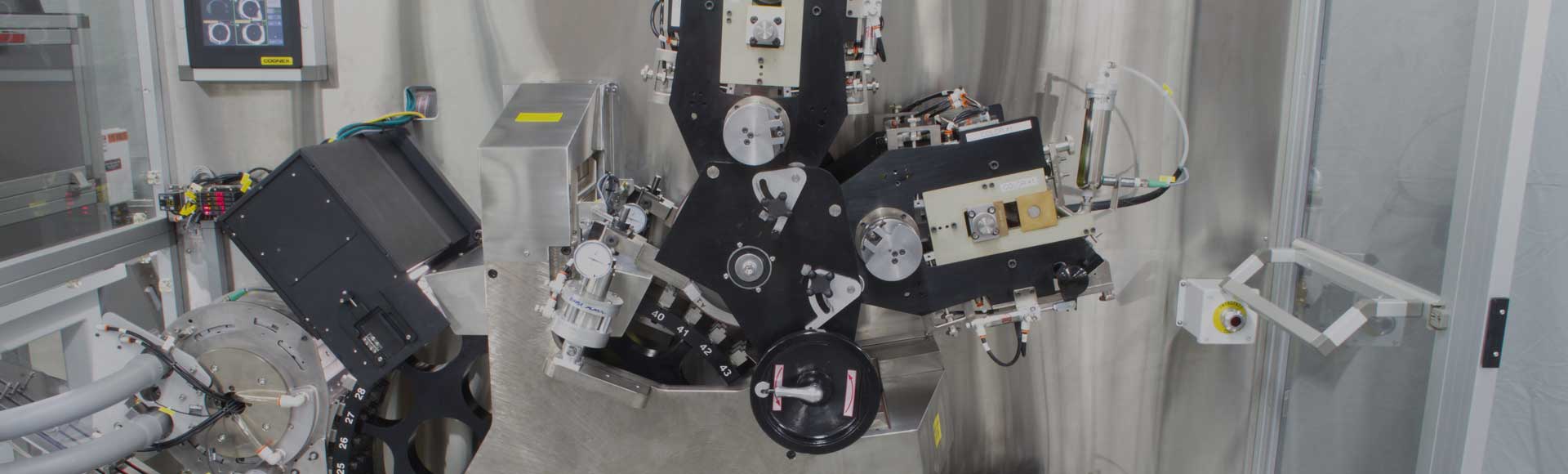

A wide variety of machine types are available for the decoration of Squeeze Bottles, Make Up Bottles, Razor Handles, Spray Cans, Chapstick & Lipstick Tubes, Eyeliner Pencils, Makeup Jars, Mascara Tubes, Nail Polish Bottles, Toothbrushes, Plastic & Metal Tubes just to touch on some of the possibilities.
Apex Machine offers every type of printing and decoration technology, so whether the requirement is for standard printing or for high end decoration with metallic and color hot foiling, or even a combination of technologies we can offer fully customized solutions.
A few examples of machines in this class include:
C-40 Cylindrical Parts Printers
C-40 Cylindrical Parts Printers
Apex C-40 series printers are highly adaptable to suit a wide variety of specialist printing and decorating applications. The flexible design characteristics enable the machines to have considerable scope for size adjustments to allow a variety of products to be printed. The C-40 can be supplied with a variety of print technologies ranging from dry offset and gravure, to hot foil applications or specialist coatings.
Diverse applications for the C-40 range include:
Lipstick Tubes, Golf Balls, Cans, Rigid Tubes, Corks, Cups, Bottles, Squeeze Tubes, Pill Jars and Glue Sticks to name just a few.
The C-40 can be supplied as a complete semi-automatic straight wall cylindrical part printing system that includes a feed station, pre-treat station, print station, UV drying station, and optional eject station all in one small footprint.
This machine is designed so that parts can be manually loaded onto mandrels located on a four or eight station rotary index wheel. On a four mandrel index wheel, the load mandrel is also the exit mandrel. An optional automatic eject can be added to the eight mandrel system. The C-40 can also be supplied with part or full automation for higher speed operation.
Following the loading section is an optional Gas Flame or Corona pre-treatment section where the part is rotated and the circumference is pre-treated prior to its entrance into the print station. Following the pre-treatment is the print section, where colors and graphics are added to the part. Next, the part indexes into a UV curing section where the part is rotated and the circumference is exposed to the UV light source until the ink is "cured" and dry. Finally, the part indexes so that it can be ejected.
Either a mechanical part holder or an optional Vacuum Assist mechanism is typically utilized to secure the part to a mandrel. An optional Rotational Orientation Device can be integrated on each mandrel to register the imprint on the part.
For multiple color capacity, this machine utilizes either Dry Offset or FlexApex printing methods for decorating the cylindrical objects. Each Dry Offset Print Head includes a 360° plate drum allowing for the use of Photopolymer Print Plates. These plates may be secured using a variety of optional plate mounting systems, for example, Vacuum, Magnetic, Strap-On or Double Sided Tape.
The print station can consist of up to Four Dry Offset Heads printing circumferentially on the part. If the part incorporates STRAIGHT WALLS, a 360° artwork wrap can be achieved. An optional angling device can allow for tapered parts to be printed however, the more the taper, the less artwork wrap can be achieved. In either case, spot artwork can be printed around the circumference.
The C-40 in manual loading mode operates at about 20 to 35 parts per minute, limited only by the speed of the operator. It is ideally suited for a wide variety of cylindrical products including cups and tubes. In automatic loading configurations higher operation speeds of up to 100 parts per minute can be achieved.
The following is a listing of standard options:
- Four or Eight Station layout
- Orientation Device
- Vacuum Part Assist
- Mechanical Part Assist
- Gas Flame Treating Station - for 3", 6" or 9" wide print area
- Corona Treating Station - for 3", 6" or 9" wide print area
- Up to Four Dry Offset Print Heads - for 3", 6" or 9" wide print area
- Vacuum, Magnetic, Strap-on or Double-sided Tape plate mount systems
- Ultraviolet Light Drying System - for 3", 6" or 9" wide print area
- Air Blow Off or Mechanical Eject System
- Choice of Printing Systems - Dry Offset, Flexapex, Hot Foil
Detailed machine information, specifications and, in many cases, videos are available on request once we have the basic details of your application and requirements to enable us to select and supply the most relevant information and recommendations. Please click below to submit a request for additional information. We will be very pleased to provide you further information and assistance.
C-400 Rigid Cylindrical Parts Printers
C-400 Cylindrical Parts Printers
Apex C-400 series printers are highly adaptable to suit a wide variety of specialist printing and decorating applications. They are designed to handle rigid and semi-rigid cylindrical parts which are able to withstand the pressure of the the printing process without deforming. C-400's are produced to handle parts as diverse as golf tees, pencils, aerosol cans, marker barrels, shotgun cartridges and many more.
The heart of the system is a continuous motion or indexing chain assembly that carries rigid components throughout the system. Appropriate feeders, pre-treaters, cleaning systems, decoration/printing units, dryers, coaters and unloaders can all be incorporated into the system.
Optional automation to assist with component assembly can also be integrated.
Every customer has a different requirement and each C-400 is therefore tailored specifically to meet your needs and budget.
Features
Automation
Hopper; Chute; Vibratory Bowl; Rotary Bowl; Conveyor; In-Line
Pretreat
Gas/Flame; Corona Discharge
Cleaners
Vacuum; Air Jet; De-ionized Air; Tacky Roll; Brush
Decoration
Dry Offset; Flexapex; Rotary Silk Screen; Rotary Hot Stamp; Rotary Gravure; Letterflex; Flexographic
Drying
Air Dry; Heat Gun; Hot Air Oven; Convection Oven; Ultra-Violet
Options
Overcoat / UV Dry; Auto Cap Insert; Auto Sub-Assembly;
Vision Inspection; Auto Adjust
Detailed machine information, specifications and, in many cases, videos are available on request once we have the basic details of your application and requirements to enable us to select and supply the most relevant information and recommendations. Please click below to submit a request for additional information. We will be very pleased to provide you further information and assistance.
C-50 Tube Printers
C-50 Tube & Cup Printers
Apex C-50 series printers are highly adaptable to suit a wide variety of specialist printing and decorating applications.
The flexible design characteristics enable the machines to have considerable scope for size adjustments to allow a variety of products to be printed.
The C-50 can be supplied with a variety of print technologies ranging from dry offset and gravure, to hot foil applications or specialist coatings.
The C-50 utilizes mandrels to support flexible or rigid parts to allow printing on their full length, and 360° around. Parts commonly printed on the C-50 include:
• Barrels • Bottles • Cartridges • Containers • Cups • Syringes • Tubes • Caps
Be it a disposable syringe, a marker pen barrel, or a squeeze tube, the C-50 is one of the most flexible and versatile decoration systems on the market today.
The heart of the machine is a 6, 12, or 16 station servo driven index table with quick change horizontal or vertical mandrels mounted at centers around the machine.
Interfaced within are the appropriate:
Feeder / Loader
The feeding of components to the print system can be simple or sophisticated depending upon the type of product to be handled, and the production speed required. Typically hoppers and bowl feeds are utilized for smaller components, and inline conveyors or chutes for larger products.
Pre-Treaters
Gas treaters or corona discharge units are commonly used to pretreat plastic components to allow the highest quality of print and adhesion. Either system can be integrated within the C-50, and both are available in many different formats and types to suit every customer's unique requirements.
Decoration Unit
Any decoration technology can be integrated into the C-50. For multi-color applications, we suggest a dry offset print station. This can be supplied in different widths and with up to six color heads. For single color or overcoating applications we suggest the use of rotary silkscreening, rotary hot stamping, letterflex, or flexographic printing, with each type specifically designed and interfaced to suit your own specific requirements.
Dryers
Forced hot air, infrared, convection and ultra-violet curing units can be supplied to cure the appropriate ink for each customer's individual demands and requirements.
As with all Apex machines, we tailor each one to suit the individual customer's specification.
Detailed machine information, specifications and, in many cases, videos are available on request once we have the basic details of your application and requirements to enable us to select and supply the most relevant information and recommendations. Please click below to submit a request for additional information. We will be very pleased to provide you further information and assistance.
C-500 Tube Printers

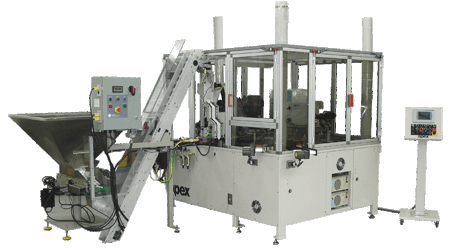

C-500 Printers
The C-500 utilizes mandrels to support flexible or rigid parts to allow printing on their full length, and 360 degrees around.
Parts commonly printed on the C-500 include:
• Barrels • Bottles • Cartridges • Containers • Cups • Syringes • Tubes • Oil Filters
Be it a disposable syringe, a marker pen barrel, or a squeeze tube, the C-500 is one of the most flexible and versatile decoration systems on the market today.
The heart of the machine is a 6, 12, or 16 station servo driven index table with quick change horizontal or vertical mandrels mounted at centers around the machine.
Interfaced within are the appropriate:
Feeder / Loader
The feeding of components to the print system can be simple or sophisticated depending upon the type of product to be handled, and the production speed required. Typically hoppers and bowl feeds are utilized for smaller components, and inline conveyors or chutes for larger products.
Pre-Treaters
Gas treaters or corona discharge units are commonly used to pretreat plastic components to allow the highest quality of print and adhesion. Either system can be integrated within the C-500, and both are available in many different formats and types to suit every customer's unique requirements.
Machine Types
C-500-3 | |||
---|---|---|---|
Part Diameter | min | 0.175" | 4.45mm |
max | 6.00" | 152.4mm | |
Part Length | min | 0.25" | 6.35mm |
max | 6.00" | 152.4mm | |
Copy Length | max | 3.00" | 76.2mm |
C-500-6 | |||
Part Diameter | min | 0.175" | 4.45mm |
max | 6.00" | 152.4mm | |
Part Length | min | 0.25" | 6.35mm |
max | 10.00" | 254mm | |
Copy Length | max | 6.00" | 152.4mm |
C-500-9 | |||
Part Diameter | min | 0.175" | 4.45mm |
max | 6.00" | 152.4mm | |
Part Length | min | 0.25" | 6.35mm |
max | 10.00" | 254mm | |
Copy Length | max | 9.00" | 226.6mm |
Decoration Unit
Any decoration technology can be integrated into the C-500. For multi-color applications, we suggest a dry offset print station. This can be supplied in different widths and with up to six color heads. For single color or overcoating applications we suggest the use of rotary silkscreening, rotary hot stamping, letterflex, or flexographic printing, with each type specifically designed and interfaced to suit your own specific requirements.
Dryers
Forced hot air, infrared, convection and ultra-violet curing units can be supplied to cure the appropriate ink for each customer's individual demands and requirements.
As with all Apex machines, we tailor each one to suit the individual customer's specification and requirements.
Technical
Up to 12" of copy can be printed on parts no more than 12" (304mm) in length and 6" (152mm) diameter. Production speed up to 200 parts per minute.
Electrical: 220, 380, 440 volt, single or 3-phase - 50/60 Hertz.
Pneumatics: 70-80 psi - 5 cfm.
Detailed machine information, specifications and, in many cases, videos are available on request once we have the basic details of your application and requirements to enable us to select and supply the most relevant information and recommendations. Please click below to submit a request for additional information. We will be very pleased to provide you further information and assistance.
S-40 Flat Surface Printers
S-40 Multi-Purpose Flat Product Printers
S-40 printing machines from Apex offer a wide range of options for the printing of flat surface products of all types. Any of the print technologies and methods can be incorporated into these machines which are used to print a hugely diverse range of products. The S-series machines can be engineered to handle:
- rigid self-supporting parts such as blocks, solid molded or heavy-walled products
- flexible products such as ice cream carton lids, lunch meat packs, etc., requiring support for printing
- odd shaped products which have one or more flat planes for printing, including items like cosmetic products boxes and containers, plastic paper clips, hanger clips, lids, pre-made boxes for label and details overprinting.
- products requiring printing on more than one plane like egg boxes
- sawblades, lids, cap tops, rulers, single dosage packs and many more.
All systems can be supplied with the appropriate print technologies, handling and treatment options as required. Production speeds are generally over 100 parts per minute - product size is unlimited.
Detailed machine information, specifications and, in many cases, videos are available on request once we have the basic details of your application and requirements to enable us to select and supply the most relevant information and recommendations. Please click below to submit a request for additional information. We will be very pleased to provide you further information and assistance.
